01
Powertrain configuration
Sinotruck Howo Bitumen Tank is published with engine power: 336 and drive type: 6x4. The final combination is reviewed against the intended route and duty cycle.
other truck

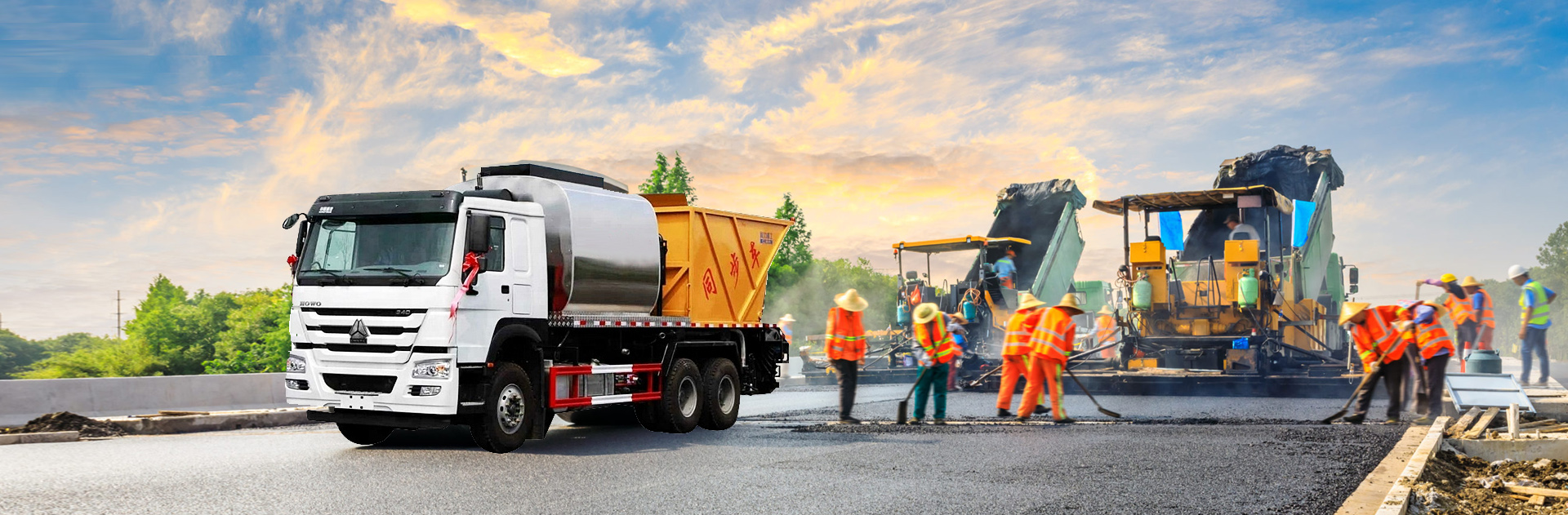

Sinotruck Howo Bitumen Tank
SINOTRUK bitumen tank is designed for asphalt transportation and distribution, with heating system for maintaining optimal temperature.
Product Details
Published configuration
Use the published values as the starting point for configuration review. Prepare an RFQ to confirm operating conditions, destination requirements and unlisted specifications.
- Engine power
- 336
- Engine model
- WD615.69
- Engine manufacturer
- CNHTC
- Engine type
- 6 cylinder in line, 4 stroke, water cooled, direct injection
- Emission standard
- EURO 2
Available specifications
Configuration by system
Values below are preserved exactly as published. Missing fields are marked for confirmation.
Powertrain
- Engine power
- 336
- Engine model
- WD615.69
- Engine manufacturer
- CNHTC
- Engine type
- 6 cylinder in line, 4 stroke, water cooled, direct injection
- Emission standard
- EURO 2
- Transmission control
- Manual
- Transmission
- 10 speed forward, 2 speed reverse
Chassis
- Drive type
- 6X4
- Tyre
- 295/80R22.5
- Tyre count
- 10+1 spare tire
- Cab
- HOWO HW76 flat-roof cab with A/C, power steering
Dimensions
- Overall dimensions
- 10200*2500*3730 mm
- Wheelbase
- 4325+1350 mm
- Spraying width
- 4m
Capacity
- Production capacity
- <40t/h
- Curb weight
- 18200 kg
- Tank volume
- 8M3 asphalt tank + 12M3 stone silo
- Tank material
- Inner 4mm carbon steel, medium 100mm rock wool, outer 1mm stainless steel
Other specifications
- Control mode
- Automatic
- Gross vehicle mass
- 25000 kg
- Chassis
- Howo
- Chassis model
- ZZ1257N4341W
- Displacement
- 9726/247
- Asphalt pump
- QGB950 (high viscosity asphalt pump) 950L/min
- Hydraulic system
- Gear pump (Tianjin GPC4-50-20-16), automatic reversing valve and relief valve, asphalt pump hydraulic drive motor model 05-130-BD31; proportional valve EFRD-G03-160-5-31 (Taiwan)
- Spraying rate
- 0.25-4.0L/M2
- Vehicle type
- Bitumen distributor truck
Capability review
Performance
Sinotruck Howo Bitumen Tank combines drive type: 6x4 with engine power: 336. The published values provide a factual starting point for matching the vehicle to route, cargo, body and destination requirements.
02

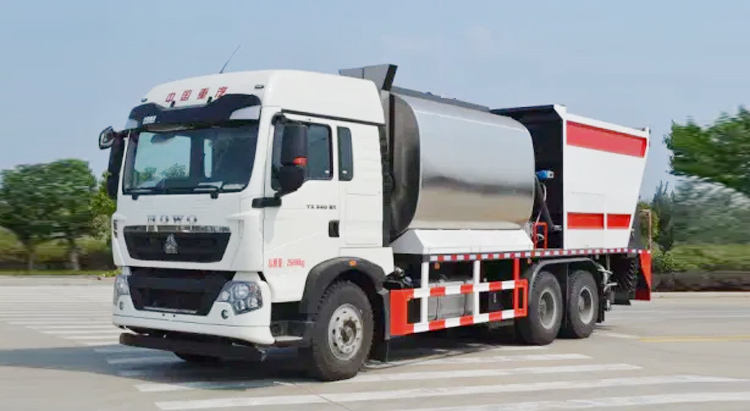

Transmission and axle matching
For Sinotruck Howo Bitumen Tank, the available record lists transmission control: manual and axle configuration to be confirmed. These values provide the basis for configuration confirmation before quotation.
03
Working configuration
For Sinotruck Howo Bitumen Tank, production capacity: <40t/h. Provide cargo, operating conditions and destination requirements for a complete review.
Product gallery
Vehicle views
1 / 3Where it fits
SINOTRUK Application Areas
Review operating scenarios selected from the published vehicle type. Final suitability depends on route, load, body and destination requirements.
Purpose-built site operations
Sinotruck Howo Bitumen Tank: The chassis and upper body are reviewed as one working system for the specified task.
- —Duty definition
- —Upper-body matching
- —Site conditions
Construction and industrial sites
Sinotruck Howo Bitumen Tank: Drive form, axle configuration and working equipment are matched to the declared site conditions.
- —Site access
- —Working cycle
- —Configuration confirmation
Municipal and fleet projects
Sinotruck Howo Bitumen Tank: Documentation, repeatable specifications and delivery coordination support multi-vehicle procurement.
- —Project requirements
- —Fleet consistency
- —Delivery planning
Procurement planning
SINOTRUK Solutions
Connect the published vehicle record to the configuration, documentation and support inputs needed for an export enquiry.
Duty-matched powertrain
The published Sinotruck Howo Bitumen Tank record lists engine power: 336 and transmission control: manual. Final matching follows the route and operating requirement.
- Route and gradient review
- Powertrain comparison
- Destination emission confirmation
Chassis and body coordination
Sinotruck Howo Bitumen Tank lists drive type: 6x4 and production capacity: <40t/h, providing the starting facts for reviewing chassis, body and loading requirements together.
- Chassis configuration
- Body or equipment matching
- Loading method review
Parts and maintenance preparation
For Sinotruck Howo Bitumen Tank, the vehicle reference, configuration list and destination should be recorded so parts identification and published maintenance information remain traceable.
- Product reference record
- Parts identification inputs
- Published maintenance documents
From selection to operation
SINOTRUK Customer Service
Use these service paths to prepare a traceable enquiry for Sinotruck Howo Bitumen Tank. Service scope is confirmed for each order and destination. These are enquiry preparation paths available through this website, not a universal manufacturer service or warranty statement.
Configuration consultation
Organize application, route, destination and option requirements before the quotation configuration is confirmed.
Open service pathParts identification
Use the vehicle reference, VIN when available, part number and photos to support a compatibility review.
Open service path
Maintenance information
Locate published maintenance guidance and prepare the exact vehicle record needed for a technical enquiry.
Open service path
Delivery coordination
Align inspection inputs, product documents and transport requirements within the confirmed order scope.
Open service pathBuyer questions
Frequently Asked Questions
Answers use the published product record and explain what still needs confirmation before quotation.
What drive and power options are published for the Sinotruck Howo Bitumen Tank?
The current Sinotruck Howo Bitumen Tank catalogue record lists drive type: 6x4 and engine power: 336. Availability can vary by destination, so these values should be confirmed in the signed configuration sheet.
How should the Sinotruck Howo Bitumen Tank be configured for its intended work?
Start with the planned cargo or task, route surface, gradient, daily distance and destination rules. The published product information identifies the Sinotruck Howo Bitumen Tank as a other truck; the final body, axle and powertrain combination is confirmed from those operating inputs.
Which transmission and working configuration are listed for the Sinotruck Howo Bitumen Tank?
For the Sinotruck Howo Bitumen Tank, the published details state transmission control: manual and production capacity: <40t/h. Treat them as the configuration review baseline rather than a statement that every combination is available in every market.
What information is needed to request a quote for the Sinotruck Howo Bitumen Tank?
Provide the Sinotruck Howo Bitumen Tank model name, required quantity, intended cargo or application, road conditions, destination country or port, preferred emission level and any body or optional-equipment requirements.
How are maintenance information and replacement parts identified for the Sinotruck Howo Bitumen Tank?
Keep the Sinotruck Howo Bitumen Tank product reference, final configuration sheet and vehicle identification details together. For a parts enquiry, provide the VIN when available, the existing part number, clear photos and required quantity so compatibility can be reviewed.
