01
Powertrain configuration
Howo Pure Electric Dump Truck is published with motor power: 270/410 kw and drive type: 8×4. The final combination is reviewed against the intended route and duty cycle.
new energy
Howo Pure Electric Dump Truck
HOWO pure electric dump truck combines zero-emission technology with heavy-duty construction capability for sustainable mining and construction.
Product Details
Published configuration
Use the published values as the starting point for configuration review. Prepare an RFQ to confirm operating conditions, destination requirements and unlisted specifications.
- Motor power
- 270/410 kW
- Drive type
- 8×4
- Cab
- TX-K/ TX-F / TX-K / TX-F
- Front axle
- VGD75 front axle (drum) / VGD95 front axle (drum)
- Rear axle
- MCX16ZG/MCP16ZG double rear axle (drum) / MCP16ZG double rear axle (drum) / MCP16ZG/MCP23ZG double rear axle (drum) / MCP23ZG double rear axle (drum)
Available specifications
Configuration by system
Values below are preserved exactly as published. Missing fields are marked for confirmation.
Powertrain
- Motor power
- 270/410 kW
Chassis
- Drive type
- 8×4
- Cab
- TX-K/ TX-F / TX-K / TX-F
- Front axle
- VGD75 front axle (drum) / VGD95 front axle (drum)
- Rear axle
- MCX16ZG/MCP16ZG double rear axle (drum) / MCP16ZG double rear axle (drum) / MCP16ZG/MCP23ZG double rear axle (drum) / MCP23ZG double rear axle (drum)
- Suspension
- 11/11/12
- Tyre
- 11.00R20/12.00R20 / 12.00R20
Dimensions
- Cargo body dimensions
- 5600 mm / 5800 mm / 7600/7800 mm / 8000/8200 mm
- Overall dimensions
- 9745× 2550× 3450 mm / 9750× 2550× 3450 mm / 10650/ 10680× 2550× 3600 mm / 11050/ 11250× 2550× 3600 mm
- Wheelbase
- 1800+ 3225+ 1350 mm / 1800+ 3525+ 1350 mm / 1800+ 4225+ 1350 mm / 1800+ 4425+ 1350 mm
Capacity
Not published — mark for Data review and confirm in the RFQ.
Other specifications
- Vehicle model
- ZZ3317 V326 GZ1BEV / ZZ3317 V426 GZ1BEV
- Gross vehicle mass
- 31000 kg
- Battery
- CATL Lithium Iron Phosphate
- Battery energy
- 422 kWh / 350 kWh
- Maximum speed
- 89 km/h
- Maximum gradeability
- 30%
- Turning radius
- 10170 mm / 10750 mm / 11670 mm / 11960 mm
- Vehicle type
- Pure electric dump truck
Capability review
Performance
Howo Pure Electric Dump Truck combines drive type: 8×4 with motor power: 270/410 kw. The published values provide a factual starting point for matching the vehicle to route, cargo, body and destination requirements.
02

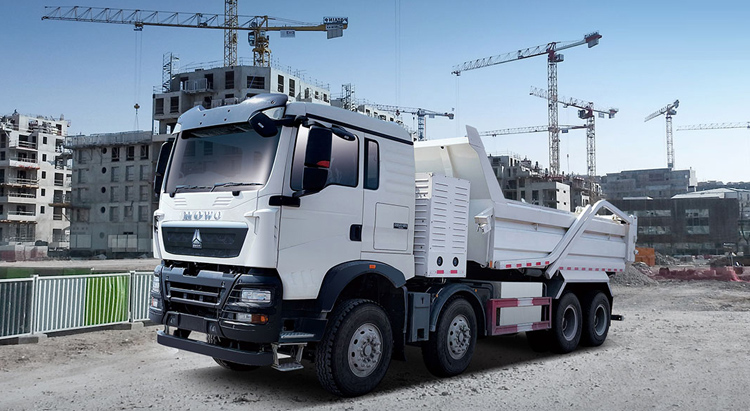

Transmission and axle matching
For Howo Pure Electric Dump Truck, the available record lists transmission to be confirmed and front axle: vgd75 front axle (drum) / vgd95 front axle (drum). These values provide the basis for configuration confirmation before quotation.
03
Working configuration
For Howo Pure Electric Dump Truck, cab: tx-k/ tx-f / tx-k / tx-f. Provide cargo, operating conditions and destination requirements for a complete review.

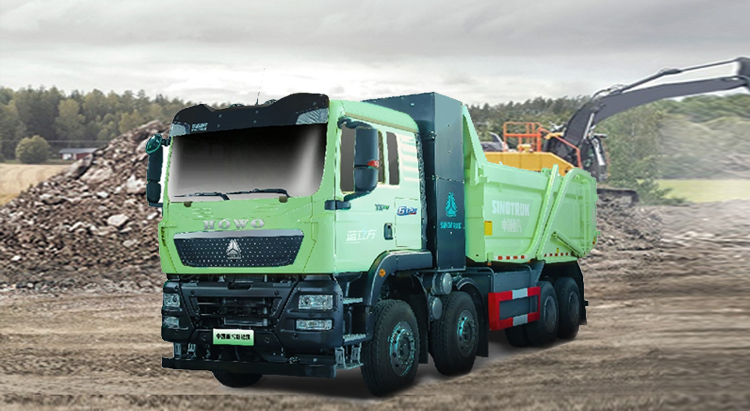

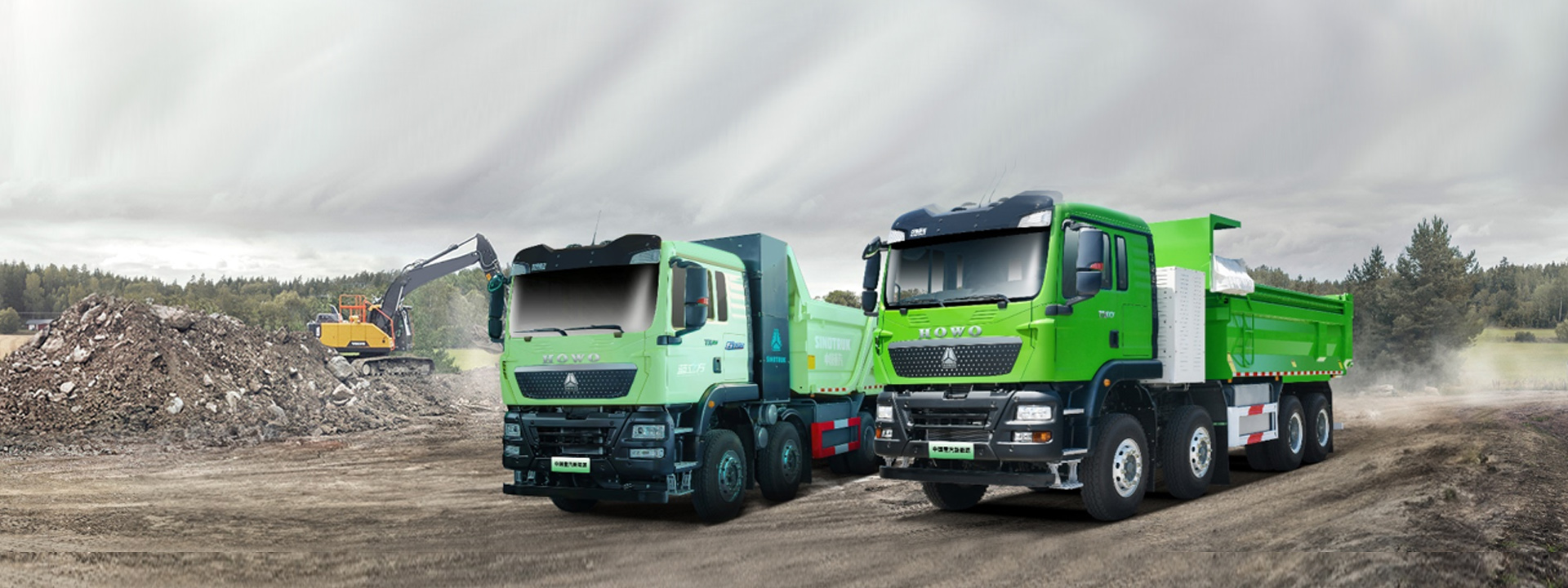

Product gallery
Vehicle views
1 / 2Where it fits
SINOTRUK Application Areas
Review operating scenarios selected from the published vehicle type. Final suitability depends on route, load, body and destination requirements.
Fixed-route urban logistics
Howo Pure Electric Dump Truck: Route length, charging access and daily duty cycle can be reviewed together before configuration.
- —Urban distribution
- —Depot-based fleets
- —Repeatable duty cycles
Port and industrial parks
Howo Pure Electric Dump Truck: Closed or semi-closed operating areas allow route and charging planning around the actual shift pattern.
- —Port transfer
- —Plant logistics
- —Yard movements
Fleet energy transition
Howo Pure Electric Dump Truck: Vehicle selection starts with the current route, payload requirement and available charging conditions.
- —Route assessment
- —Charging planning
- —Configuration review
Procurement planning
SINOTRUK Solutions
Connect the published vehicle record to the configuration, documentation and support inputs needed for an export enquiry.
Duty-matched powertrain
The published Howo Pure Electric Dump Truck record lists motor power: 270/410 kw and transmission configuration to be confirmed. Final matching follows the route and operating requirement.
- Route and gradient review
- Powertrain comparison
- Destination emission confirmation
Chassis and body coordination
Howo Pure Electric Dump Truck lists drive type: 8×4 and cargo body dimensions: 5600 mm / 5800 mm / 7600/7800 mm / 8000/8200 mm, providing the starting facts for reviewing chassis, body and loading requirements together.
- Chassis configuration
- Body or equipment matching
- Loading method review
Parts and maintenance preparation
For Howo Pure Electric Dump Truck, the vehicle reference, configuration list and destination should be recorded so parts identification and published maintenance information remain traceable.
- Product reference record
- Parts identification inputs
- Published maintenance documents
From selection to operation
SINOTRUK Customer Service
Use these service paths to prepare a traceable enquiry for Howo Pure Electric Dump Truck. Service scope is confirmed for each order and destination. These are enquiry preparation paths available through this website, not a universal manufacturer service or warranty statement.
Configuration consultation
Organize application, route, destination and option requirements before the quotation configuration is confirmed.
Open service pathParts identification
Use the vehicle reference, VIN when available, part number and photos to support a compatibility review.
Open service path
Maintenance information
Locate published maintenance guidance and prepare the exact vehicle record needed for a technical enquiry.
Open service path
Delivery coordination
Align inspection inputs, product documents and transport requirements within the confirmed order scope.
Open service pathBuyer questions
Frequently Asked Questions
Answers use the published product record and explain what still needs confirmation before quotation.
What drive and power options are published for the Howo Pure Electric Dump Truck?
The current Howo Pure Electric Dump Truck catalogue record lists drive type: 8×4 and motor power: 270/410 kw. Availability can vary by destination, so these values should be confirmed in the signed configuration sheet.
How should the Howo Pure Electric Dump Truck be configured for its intended work?
Start with the planned cargo or task, route surface, gradient, daily distance and destination rules. The published product information identifies the Howo Pure Electric Dump Truck as a new energy; the final body, axle and powertrain combination is confirmed from those operating inputs.
Which transmission and working configuration are listed for the Howo Pure Electric Dump Truck?
For the Howo Pure Electric Dump Truck, the published details state transmission is confirmed per quotation and cab: tx-k/ tx-f / tx-k / tx-f. Treat them as the configuration review baseline rather than a statement that every combination is available in every market.
What information is needed to request a quote for the Howo Pure Electric Dump Truck?
Provide the Howo Pure Electric Dump Truck model name, required quantity, intended cargo or application, road conditions, destination country or port, preferred emission level and any body or optional-equipment requirements.
How are maintenance information and replacement parts identified for the Howo Pure Electric Dump Truck?
Keep the Howo Pure Electric Dump Truck product reference, final configuration sheet and vehicle identification details together. For a parts enquiry, provide the VIN when available, the existing part number, clear photos and required quantity so compatibility can be reviewed.
